Design a sequential circuit with two D flip-flops A and B, and one input x_in . (a) * When x_in = 0, the state of the circuit remains the same. When x_in = 1, the circuit goes through the state transitions from 00 to 01, to 11, to 10, back to … Continue reading

Design a sequential circuit with two D flip-flops A and B, and one input x_in .

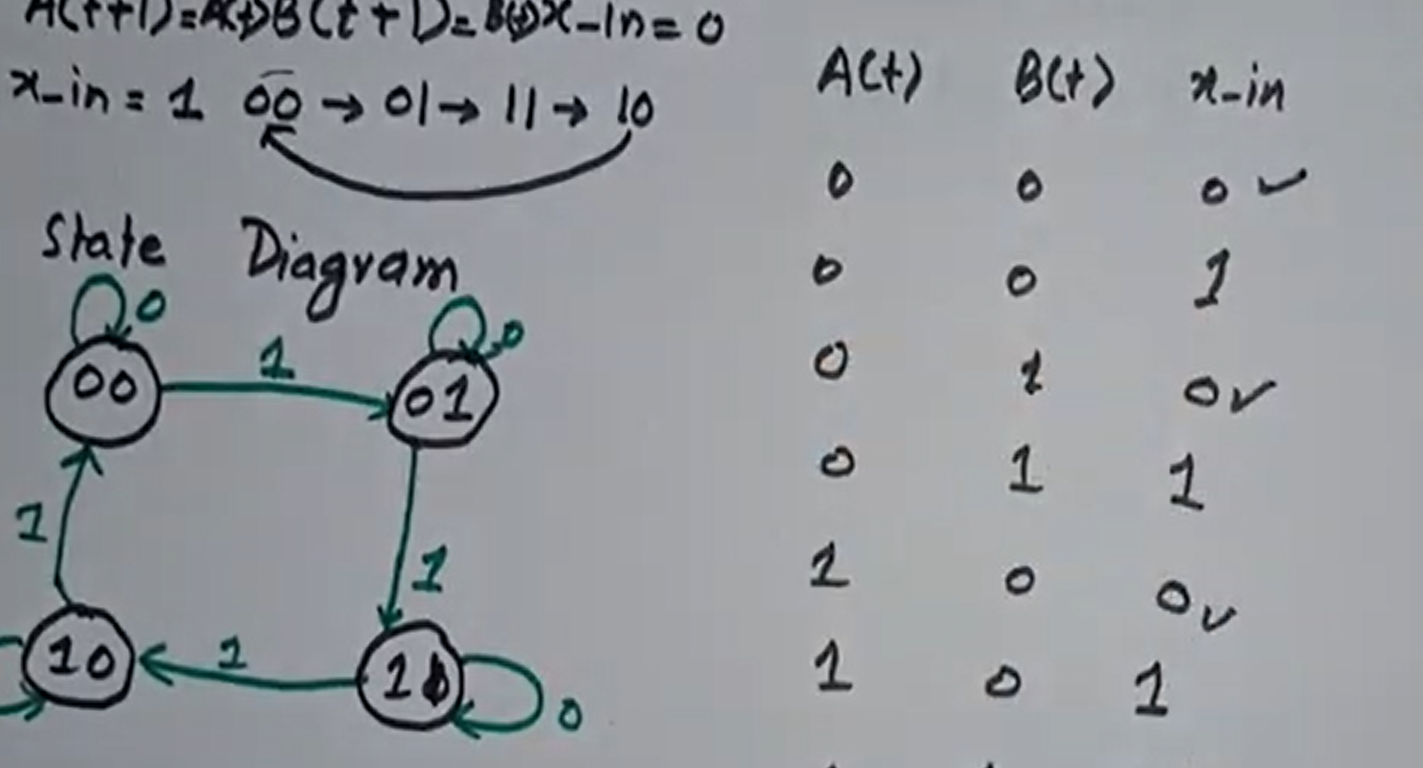

(a) * When x_in = 0, the state of the circuit remains the same. When x_in = 1, the circuit

goes through the state transitions from 00 to 01, to 11, to 10, back to 00, and repeats.

(b) When x_in = 0, the state of the circuit remains the same. When x_in =1, the circuit

goes through the state transitions from 00 to 11, to 01, to 10, back to 00, and repeats.
